Reversed palletainer is one type of one piece welded stack rack pallet. But this type of one piece welded stack rack pallet has the four support posts under base table basket, which is contrary to normal stack racks whose base is on floor and posts are on base. That’s why we call it reversed stack rack pallet. Palletainer is called by people in South-east Asia, because they are going to hold pallet inside them, and itself is a pallet.
The structure of reversed palletainer is very easy. It has bottom base, posts, side support, top base, support bar, back stopper and male connector. Most of parts are made of 50*50mm square tube. The back stopper is folded panel. The male connector is stack head of normal stack racks.
To use this type of reversed palletainer, just drive forklift to take it by top base to storage area, the space under top base can store one pallet, and another pallet can be placed on top base. To store the third pallet, only need to put another reversed palletainer on top base. There are two holes in the front of bottom base to connect the male connectors on top base, which makes the whole structure steadier. And same action to stack the fourth and fifth pallets.

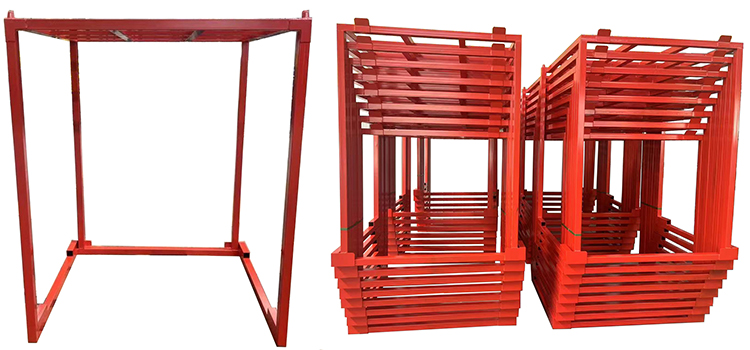

When reversed palletainer is not be used and will be transported, they can be stacked on each other in the backward way like the picture below:
The advantage of reversed palletainer is that it is very stable even though they are stacked very high, 6 or 7 levels. The earthquake happens a lot in south-east Asia, where this type is popupar. And it is kind of cheap and economic.
The disadvantage is that this type of palletainer takes much more room than other knock-down stack racks, which means it will costs more for the same quantity of stack racks.
If you are interested in this type, feel free to contact us.
Post time: May-27-2025
